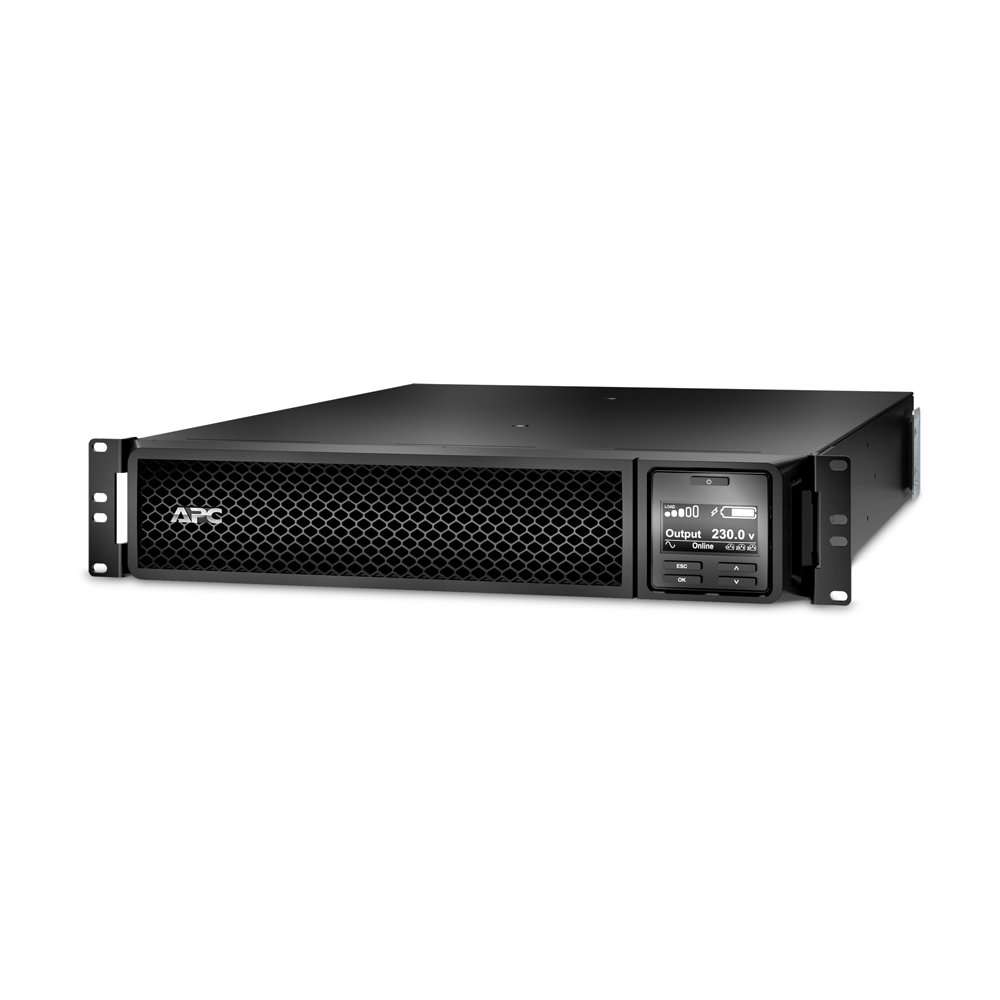

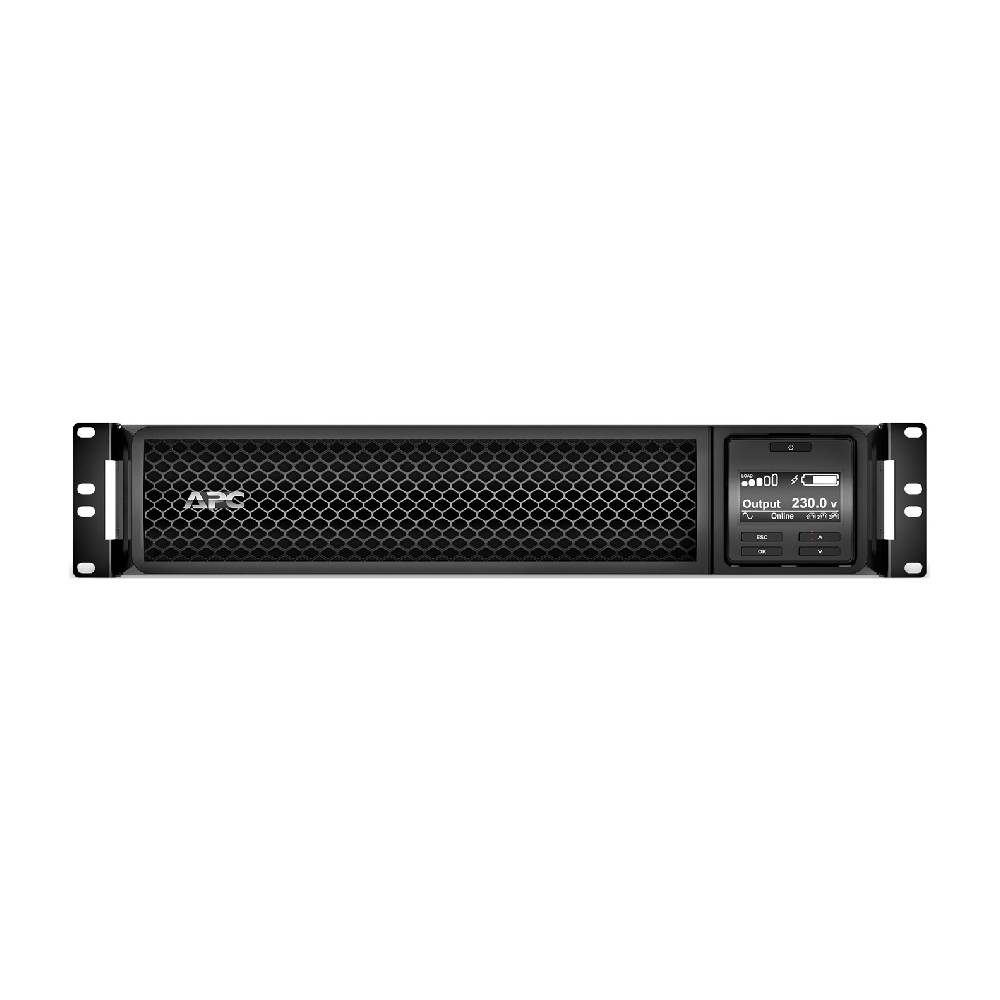

SRT3000RMXLW-IEC | APC Smart-UPS On-Line, 3000VA, RM 2U

The APC Smart-UPS On-Line, 3kVA, Rackmount 2U, 208V/230V, 6x C13+2x C19 IEC outlets, SmartSlot, Extended runtime, W/ rail kit

Key Features

• Run time for load 2700 W: 3min 58s
• Main Input Voltage: 230 V

• Main Output Voltage: 230 V
• Rated Power in W: 2700 W
• Rated Power in VA: 3000 VA
• Input Connection Type: IEC 60320 C20 / BS1363A British / Schuko CEE 7 - EU1-16P
• Output Connection Type: 6 IEC 60320 C13 / 2 IEC Jumpers / 2 IEC 60320 C19
• Number of Rack Unit: 2U
• Cable Length: 2.44m
• Number of Cables: 1
• Battery Type: Lead-acid battery
• Height: 8.5 cm
• Width: 43.2 cm
• Depth: 63.5 cm
• Net Weight: 31.3 kg
• Provided equipment:
  CD with software
  Documentation CD
  Installation guide
  Rack mounting brackets
  Rack mounting support rails
  USB cable
  Warranty card


Downloads
Technical specifications

Options
Replacement Battery
SmartSlot
Sensor
Mounting

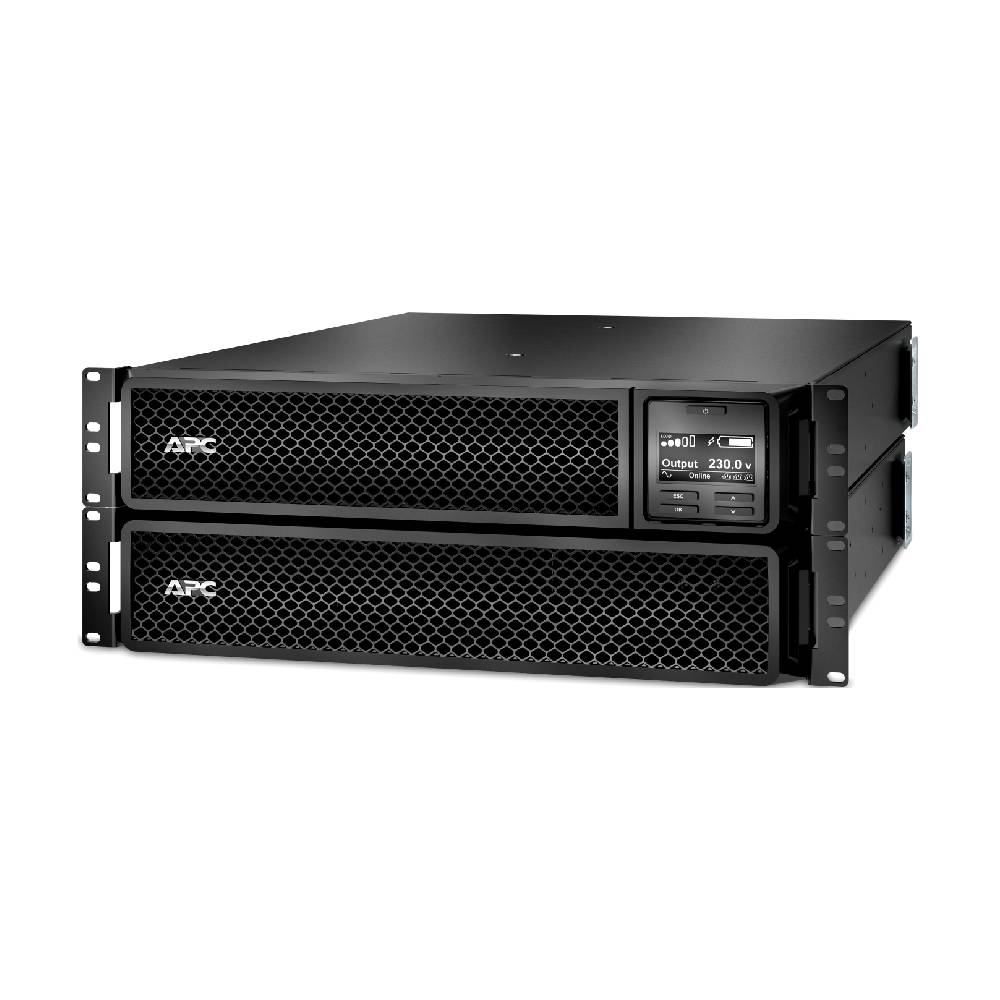

External Battery Pack
Cable

About This Product
Smart-UPS On-Line delivers reliable, high-density power protection through double-conversion technology, making it ideal for critical infrastructure such as servers, data and voice networks, medical environments, and light industrial settings. It supports power loads from 1 kVA to 10 kVA and features a flexible chassis that can be installed in either rack or tower configurations.

The 6, 8, and 10 kVA models are designed with a unity power factor, allowing them to efficiently power high-demand systems like blade servers and fully populated equipment racks. For organizations that require extended backup time, the system can be expanded with additional battery packs to provide long-duration runtime.

Included with the UPS is PowerChute™ Network Shutdown software, which enables automated, safe shutdown of networked systems. Models from 5 kVA and above also come with a built-in network management card, offering remote monitoring and control. The Smart-UPS On-Line series is engineered to perform in demanding power environments, offering features such as a wide input voltage range, precise voltage and frequency regulation, internal bypass capability, and input power factor correction.

Best-in-class power density
More real power in watts, 0.9 pf on 2.2 kVA – 5 kVA, Unity on 1-1.5 kVA unites and 6 kVA – 10 kVA units

High-efficiency “green mode”
Achieves 98 percent efficiency, which saves utility and cooling costs without compromising performance or reliability.

Graphical LCD display with multicolor backlight
Intuitive interface provides detailed and accurate information with ability to configure locally.

Intelligent battery management
Temperature-compensated charging extends life and advanced algorithms recommend replacement date. The UPS can inform user which batteries need to be replaced and auto detect when additional battery packs are added.

Built-in energy meter
Measures energy use and displays UPS efficiency in various modes of operation for easy energy tracking.

Operate without battery
Ability to immediately protect equipment when power returns after a complete discharge of the battery.

Three-year warranty on electronics
Additional year of warranty protection for electronics provides peace of mind.

Embedded network management card with environmental monitoring (5 kVA – 10 kVA models)
Remote monitoring and control of the UPS and the environment via Ethernet connection while freeing up the SmartSlotTM so customers can add accessories for additional communication options.

Switched outlet group(s)
Ability to control a group of output load receptacles independent from the main UPS. Enables:

• Rebooting hung device without cycling the entire UPS
• Sequenced turn ON/OFF
• Shedding of noncritical loads based on a variety of parameters (battery time, runtime remaining, and overload)
• Scheduled time OFF to conserve energy



Emergency power off
Remote UPS shutoff in the event of a fire or other emergency. The UPS can accept normally open (NO) or normally closed (NC) contacts.

Communication ports
Serial, USB, Ethernet, and SmartSlot for network accessory cards.

Communication protocols
Modbus serial, USB PowerSummary, HTTP, SNMP, and Telnet.

1:1, 3:1 input hard-wire options
Product can be wired for 3-PH or 1-PH input (230 V, 8 kVA, and 10 kVA models only)

Dual input
Enables second input source to be connected to UPS bypass (230 V, 8 kVA, and 10 kVA
