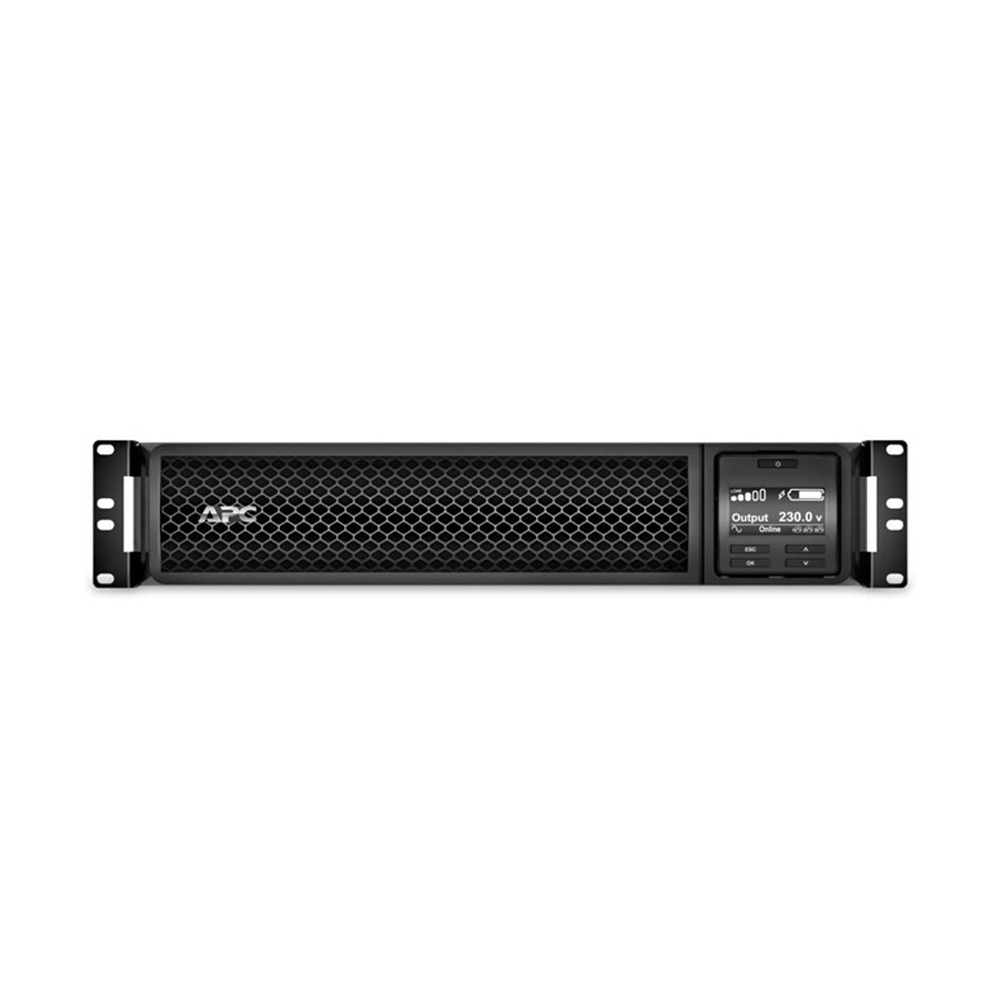

APC Smart-UPS SRT 1500VA RM 230V | SRT1500RMXLI


£1,261.78
£1,261.78

SRT1500RMXLI

5



Key Features

  • Run time for load 1500 W: 5min 9s
  • Main Input Voltage: 230 V
  • Main Output Voltage: 230 V
  • Rated Power in W: 1500 W
  • Rated Power in VA: 1500 VA
  • Input Connection Type: IEC 60320 C14
  • Output Connection Type: 6 IEC 60320 C13
  • Number of Rack Unit: 2U
  • Cable Length: 1.83m
  • Number of Cables: 1
  • Battery Type: Lead-acid battery
  • Height: 8.5 cm
  • Width: 43.2 cm
  • Depth: 50.5 cm
  • Net Weight: 21 kg
  • Provided equipment
    CD with software
    Communication cable
    Documentation CD
    Installation guide
    Rack mounting hardware
    Rack mounting brackets
    Rack mounting support rails
    USB cable
    Warranty card


Downloads
Brochure
Technical specifications

About This Product
Smart-UPS On-Line provides high-density, double-conversion, online power protection for servers, voice/data networks, medical labs, and light industrial applications. The Smart-UPS On-Line is capable of supporting loads from 1 kVA – 10 kVA in a rack/tower convertible chassis. The 6 kVA, 8 kVA, and 10 kVA models feature unity output power factor enabling them to support power-hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with multiple battery packs to meet aggressive runtime demands.

The included PowerChuteTM Network Shutdown management software provides unattended graceful shutdown of network operating systems. Models 5 kVA to 10 kVA include an integrated network management card for remote management. The entire Smart-UPS On-Line family provides value to customers with demanding power conditions, including a very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

Best-in-class power density
More real power in watts, 0.9 pf on 2.2 kVA – 5 kVA, Unity on 1-1.5 kVA unites and 6 kVA – 10 kVA units

High-efficiency “green mode”
Achieves 98 percent efficiency, which saves utility and cooling costs without compromising performance or reliability.

Graphical LCD display with multicolor backlight
Intuitive interface provides detailed and accurate information with ability to configure locally.

Intelligent battery management
Temperature-compensated charging extends life and advanced algorithms recommend replacement date. The UPS can inform user which batteries need to be replaced and auto detect when additional battery packs are added.

Built-in energy meter
Measures energy use and displays UPS efficiency in various modes of operation for easy energy tracking.

Operate without battery
Ability to immediately protect equipment when power returns after a complete discharge of the battery.

Three-year warranty on electronics
Additional year of warranty protection for electronics provides peace of mind.

Embedded network management card with environmental monitoring (5 kVA – 10 kVA models)
Remote monitoring and control of the UPS and the environment via Ethernet connection while freeing up the SmartSlotTM so customers can add accessories for additional communication options.

Switched outlet group(s)
Ability to control a group of output load receptacles independent from the main UPS. Enables:

  • Rebooting hung device without cycling the entire UPS
  • Sequenced turn ON/OFF
  • Shedding of noncritical loads based on a variety of parameters (battery time, runtime remaining, and overload)
  • Scheduled time OFF to conserve energy

Emergency power off
Remote UPS shutoff in the event of a fire or other emergency. The UPS can accept normally open (NO) or normally closed (NC) contacts.

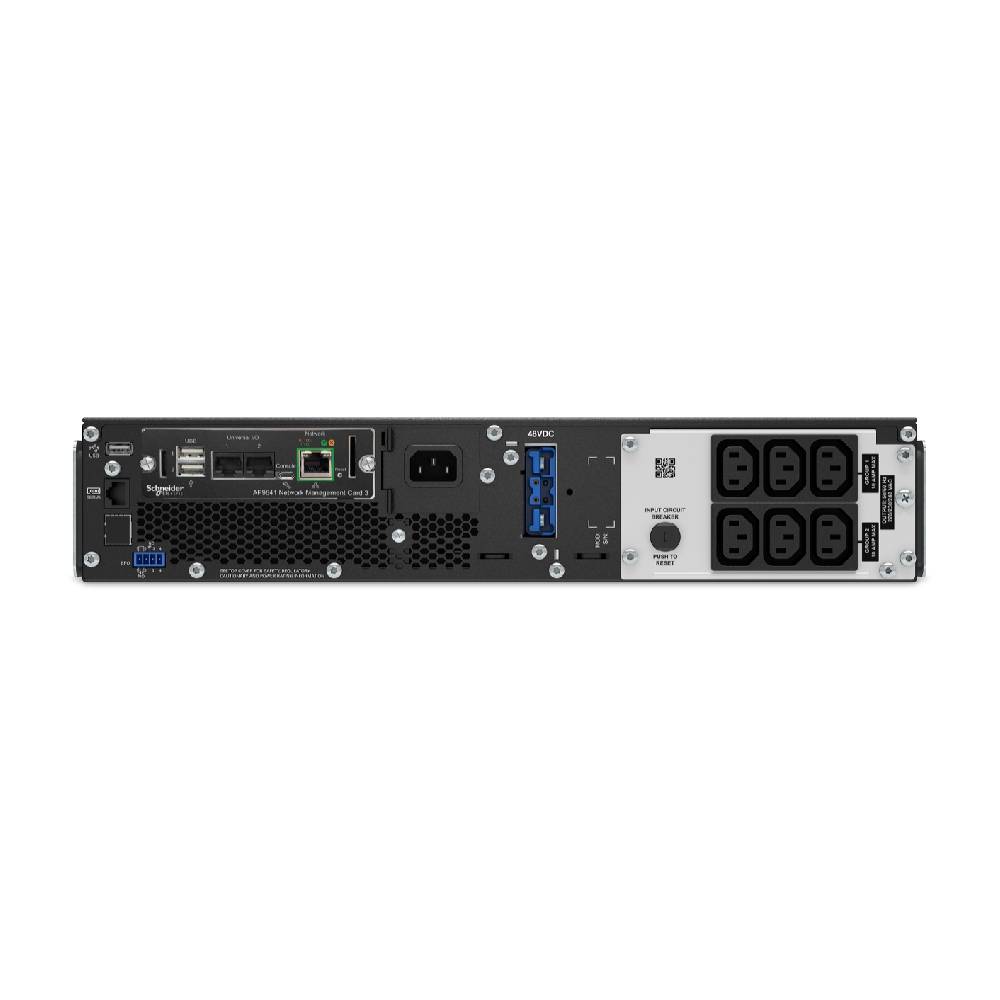

Communication ports
Serial, USB, Ethernet, and SmartSlot for network accessory cards.

Communication protocols
Modbus serial, USB PowerSummary, HTTP, SNMP, and Telnet.

1:1, 3:1 input hard-wire options
Product can be wired for 3-PH or 1-PH input (230 V, 8 kVA, and 10 kVA models only)

Dual input
Enables second input source to be connected to UPS bypass (230 V, 8 kVA, and 10 kVA


Key Features

  • Run time for load 1500 W: 5min 9s
  • Main Input Voltage: 230 V
  • Main Output Voltage: 230 V
  • Rated Power in W: 1500 W
  • Rated Power in VA: 1500 VA
  • Input Connection Type: IEC 60320 C14
  • Output Connection Type: 6 IEC 60320 C13
  • Number of Rack Unit: 2U
  • Cable Length: 1.83m
  • Number of Cables: 1
  • Battery Type: Lead-acid battery
  • Height: 8.5 cm
  • Width: 43.2 cm
  • Depth: 50.5 cm
  • Net Weight: 21 kg
  • Provided equipment
    CD with software
    Communication cable
    Documentation CD
    Installation guide
    Rack mounting hardware
    Rack mounting brackets
    Rack mounting support rails
    USB cable
    Warranty card


Downloads
Brochure
Technical specifications

About This Product
Smart-UPS On-Line provides high-density, double-conversion, online power protection for servers, voice/data networks, medical labs, and light industrial applications. The Smart-UPS On-Line is capable of supporting loads from 1 kVA – 10 kVA in a rack/tower convertible chassis. The 6 kVA, 8 kVA, and 10 kVA models feature unity output power factor enabling them to support power-hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with multiple battery packs to meet aggressive runtime demands.

The included PowerChuteTM Network Shutdown management software provides unattended graceful shutdown of network operating systems. Models 5 kVA to 10 kVA include an integrated network management card for remote management. The entire Smart-UPS On-Line family provides value to customers with demanding power conditions, including a very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

Best-in-class power density
More real power in watts, 0.9 pf on 2.2 kVA – 5 kVA, Unity on 1-1.5 kVA unites and 6 kVA – 10 kVA units

High-efficiency “green mode”
Achieves 98 percent efficiency, which saves utility and cooling costs without compromising performance or reliability.

Graphical LCD display with multicolor backlight
Intuitive interface provides detailed and accurate information with ability to configure locally.

Intelligent battery management
Temperature-compensated charging extends life and advanced algorithms recommend replacement date. The UPS can inform user which batteries need to be replaced and auto detect when additional battery packs are added.

Built-in energy meter
Measures energy use and displays UPS efficiency in various modes of operation for easy energy tracking.

Operate without battery
Ability to immediately protect equipment when power returns after a complete discharge of the battery.

Three-year warranty on electronics
Additional year of warranty protection for electronics provides peace of mind.

Embedded network management card with environmental monitoring (5 kVA – 10 kVA models)
Remote monitoring and control of the UPS and the environment via Ethernet connection while freeing up the SmartSlotTM so customers can add accessories for additional communication options.

Switched outlet group(s)
Ability to control a group of output load receptacles independent from the main UPS. Enables:

  • Rebooting hung device without cycling the entire UPS
  • Sequenced turn ON/OFF
  • Shedding of noncritical loads based on a variety of parameters (battery time, runtime remaining, and overload)
  • Scheduled time OFF to conserve energy

Emergency power off
Remote UPS shutoff in the event of a fire or other emergency. The UPS can accept normally open (NO) or normally closed (NC) contacts.

Communication ports
Serial, USB, Ethernet, and SmartSlot for network accessory cards.

Communication protocols
Modbus serial, USB PowerSummary, HTTP, SNMP, and Telnet.

1:1, 3:1 input hard-wire options
Product can be wired for 3-PH or 1-PH input (230 V, 8 kVA, and 10 kVA models only)

Dual input
Enables second input source to be connected to UPS bypass (230 V, 8 kVA, and 10 kVA
