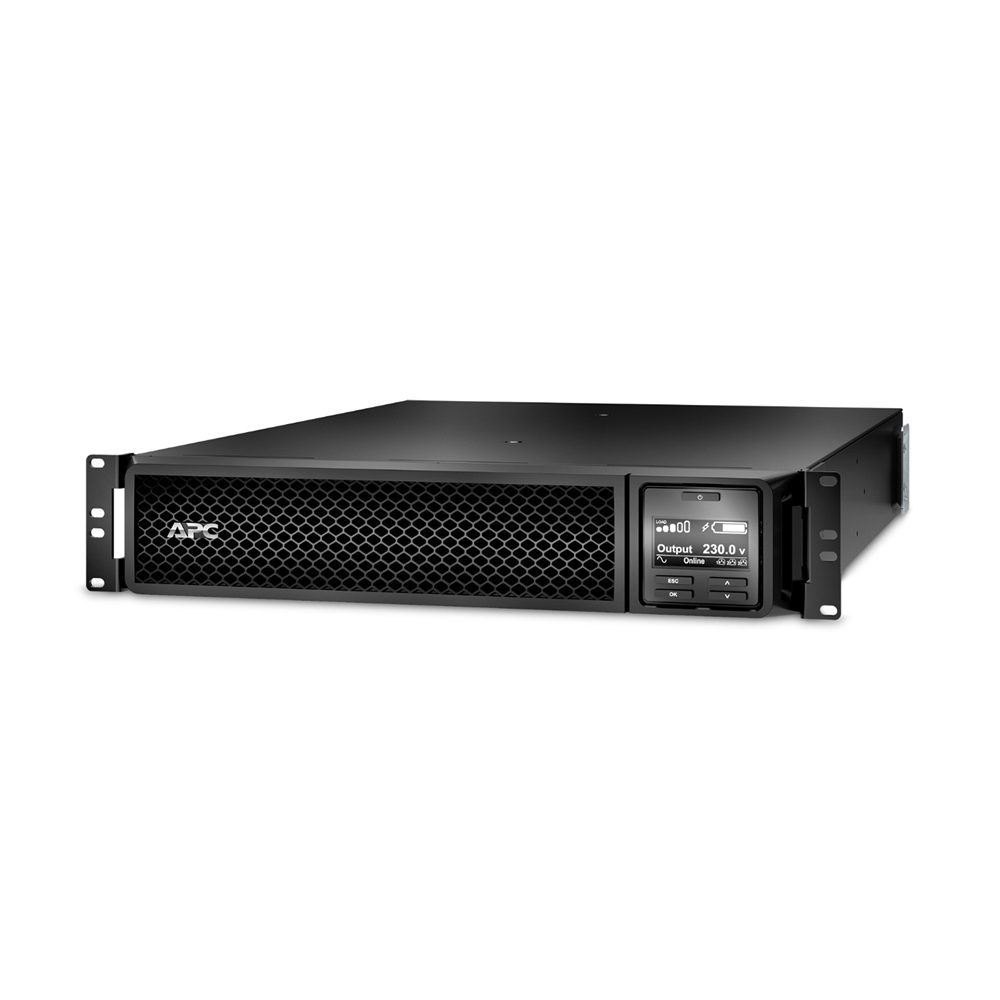

SRT1000RMXLI | APC Smart-UPS On-Line, 1000VA, RM 2U

The APC Smart-UPS On-Line, 1000VA, Rackmount 2U, 230V, 6x C13 IEC outlets, SmartSlot, Extended runtime, W/ rail kit

Key Features

• Run time for load 1000 W: 8min 27s
• Main Input Voltage: 230 V

• Main Output Voltage: 230 V
• Rated Power in W: 1000 W
• Rated Power in VA: 1000 VA
• Input Connection Type: IEC 60320 C14 / BS1363A British / Schuko CEE 7 - EU1-16P
• Output Connection Type: 6 IEC 60320 C13
• Number of Rack Unit: 2U
• Cable Length: 1.83m
• Number of Cables: 1
• Battery Type: Lead-acid battery
• Height: 8.5 cm
• Width: 43.2 cm
• Depth: 50.5 cm
• Net Weight: 21 kg
• Provided equipment:
  CD with software
  Communication cable
  Documentation CD
  Installation guide
  Rack mounting hardware
  Rack mounting brackets
  Rack mounting support rails
  USB cable
  Warranty card

Downloads
Brochure
Technical specifications

Options
Replacement Battery
SmartSlot
Sensor
Mounting
External Battery
Cables


About This Product
Smart-UPS On-Line offers advanced, high-density power protection through double-conversion online technology, making it ideal for safeguarding servers, communication systems, medical facilities, and light industrial setups. Designed to handle loads ranging from 1 kVA to 10 kVA, these units come in a versatile chassis that can be installed in either rack or tower configurations.

The 6 kVA, 8 kVA, and 10 kVA models are optimized with a unity power factor, allowing them to efficiently power high-demand systems such as blade servers and densely populated IT racks. For operations that require extended backup time, these models can be expanded with additional battery packs to deliver long-duration runtime.

Each unit includes PowerChute™ Network Shutdown software, which enables automated and safe shutdown of networked systems during power interruptions. Models from 5 kVA and above are equipped with a built-in network management card, allowing for remote monitoring and control.

The Smart-UPS On-Line series is engineered to perform reliably in environments with unstable power, offering features such as a broad input voltage range, precise voltage and frequency regulation, built-in bypass functionality, and input power factor correction—ensuring consistent and clean power delivery for mission-critical applications.

Best-in-class power density
More real power in watts, 0.9 pf on 2.2 kVA – 5 kVA, Unity on 1-1.5 kVA unites and 6 kVA – 10 kVA units

High-efficiency “green mode”
Achieves 98 percent efficiency, which saves utility and cooling costs without compromising performance or reliability.

Graphical LCD display with multicolor backlight
Intuitive interface provides detailed and accurate information with ability to configure locally.

Intelligent battery management
Temperature-compensated charging extends life and advanced algorithms recommend replacement date. The UPS can inform user which batteries need to be replaced and auto detect when additional battery packs are added.

Built-in energy meter
Measures energy use and displays UPS efficiency in various modes of operation for easy energy tracking.

Operate without battery
Ability to immediately protect equipment when power returns after a complete discharge of the battery.

Three-year warranty on electronics
Additional year of warranty protection for electronics provides peace of mind.

Embedded network management card with environmental monitoring (5 kVA – 10 kVA models)
Remote monitoring and control of the UPS and the environment via Ethernet connection while freeing up the SmartSlotTM so customers can add accessories for additional communication options.

Switched outlet group(s)
Ability to control a group of output load receptacles independent from the main UPS. Enables:

• Rebooting hung device without cycling the entire UPS
• Sequenced turn ON/OFF
• Shedding of noncritical loads based on a variety of parameters (battery time, runtime remaining, and overload)
• Scheduled time OFF to conserve energy



Emergency power off
Remote UPS shutoff in the event of a fire or other emergency. The UPS can accept normally open (NO) or normally closed (NC) contacts.

Communication ports
Serial, USB, Ethernet, and SmartSlot for network accessory cards.

Communication protocols
Modbus serial, USB PowerSummary, HTTP, SNMP, and Telnet.

1:1, 3:1 input hard-wire options
Product can be wired for 3-PH or 1-PH input (230 V, 8 kVA, and 10 kVA models only)

Dual input
Enables second input source to be connected to UPS bypass (230 V, 8 kVA, and 10 kVA
