When choosing a single-phase lithium-ion UPS, it’s important to select a system that matches your exact power requirements. A correctly sized UPS ensures your critical equipment remains protected, reducing the risk of downtime and data loss during power interruptions.

Understanding UPS Systems

What is a UPS?

An Uninterruptible Power Supply (UPS) is designed to provide temporary backup power when the main electrical supply fails. This allows connected equipment to continue running briefly or shut down safely, helping to avoid damage and loss of important data.

Types of UPS Systems

There are three main types of UPS systems:

  • Standby (Offline)
  • Line-Interactive
  • Online (Double Conversion)

Each type delivers a different level of protection depending on how sensitive your equipment is and how stable your power supply needs to be.

Why is a UPS Important?

UPS systems play a vital role in protecting equipment from power issues such as outages, surges, and voltage fluctuations. They are widely used across many sectors—for example:

  • Hospitals rely on them to keep essential medical devices running
  • Government organisations use them to maintain services during emergencies
  • Schools and universities depend on them to protect IT systems

Regardless of the industry, a UPS helps prevent downtime, hardware damage, and data loss during unexpected power disruptions.

How UPS Systems Are Rated

UPS units are typically measured in:

  • Kilowatts (kW) – actual power used
  • Kilovolt-amperes (kVA) – total power supplied

To determine the right UPS size, you need to consider two key factors:

  • Capacity – the total power your equipment requires
  • Runtime – how long the UPS must provide power during an outage
Sizing Your UPS

Determining Load Capacity

To calculate the required capacity:

  1. List all devices that will be connected to the UPS
  2. Record the power rating (in watts or VA) for each device (usually found on the device label)
  3. Add all the values together to calculate your total load
  4. Increase this total by 20–25% to allow for power spikes and future expansion

For example, if your total load is 2000W, adding 20% brings it to 2400W.

For optimal performance, your UPS should typically operate at no more than 75–80% of its maximum capacity. Running too close to full capacity can reduce efficiency and increase the risk of overload.

Determining Runtime Requirements

Another key consideration is how long your equipment needs to stay powered during an outage. This depends on your objectives, such as:

  • Allowing systems to shut down safely
  • Keeping networks running temporarily
  • Supporting critical systems for longer outages

What is Runtime?

Runtime is the amount of time a UPS can supply power during a power cut. This duration varies depending on the load—higher power demands will reduce the available runtime.

Estimating Runtime

Start by identifying the minimum time needed for a safe shutdown. If longer operation is required, you’ll need a UPS with extended runtime capabilities.

For example:

  • A 1kVA UPS (900W load) may provide around 11 minutes at full capacity
  • A 2kVA UPS supporting the same load could deliver approximately 24 minutes
  • A 3kVA UPS may offer 30 minutes or more when operating at a lower load percentage
Additional Considerations

Number of Outlets

Ensure the UPS has enough sockets for all connected devices. After calculating your load, count the number of power connections required and choose a unit that can support them.

Physical Form Factor

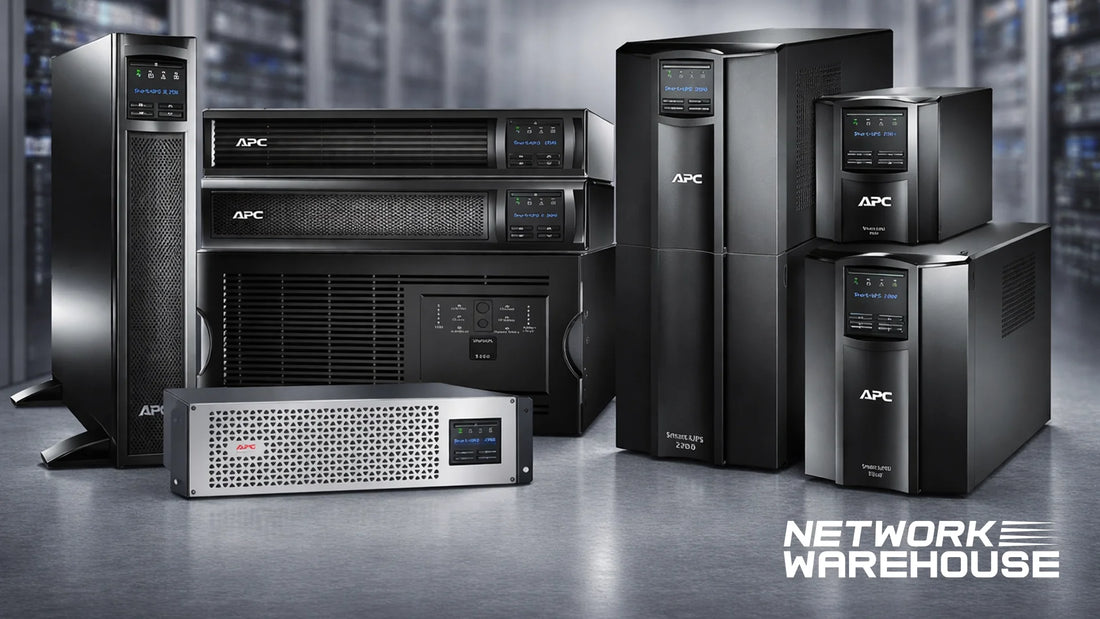

UPS systems come in different designs to suit various environments:

  • Compact units
  • Tower models
  • Rack-mounted systems

Select a format that fits your available space and installation setup.

Maintenance and Support

It’s important to review the warranty, servicing options, and customer support provided with your UPS. Reliable support ensures long-term performance and peace of mind in case of faults or maintenance needs.

Choosing the Right UPS

Selecting the correct UPS is essential for maintaining operations during power disruptions. By carefully assessing both capacity and runtime—as well as practical considerations like size and support—you can ensure your system meets your operational needs.

If you need help identifying the most suitable UPS solution, the team at Network Warehouse can provide expert guidance tailored to your specific requirements.
